300Kn Computer Control Electronic Universal Testing Machine

Share to:
Payment Type: L/C,T/T
Terms of Trade: FOB,CFR,CIF,EXW
Min. Order: 1
Delivery Time: 7
Basic Info
Model No.:WDW-300
Type: Universal Testing Machine
Maxcapacity: <1000KN
Accuracy Grade: 1
Load Way: Electronic Load
Loading Method: Static Load
Display: Digital
Control: Computer Control
Weight: 100-500Kg
Power Source: AC220V
Oil Cylinder Position: Under
Additional Info
Packaging: Export Wooden Case
Productivity: 300 Sets/month
Brand: Chenda
Transportation: Ocean
Place of Origin: China
Supply Ability: 300 Sets/month
Certificate: CE SGS
HS Code: 9024101000
Port: QINGDAO
Product Description
Brief Information
Model WDW-300 Computer Control Electronic Universal Testing Machine is designed and manufactured according to ASTM, ISO,DIN etc standards. It is computer-controlled precision Testing Machine, suitable for wide range of material for tension compression, bending and shearing test. It has high stability as well as high precision, equipped with PC system& printer for graph, test result display, test control as set program, printing & data processing. Complete with modulus for metal, spring, textile, rubber, plastic and other material testing & creep test. It is widely used in many field used in many fields such as industry factories, mineral enterprise and high schools.
Feature:
1> Complete computer controlled: the whole measuring and controlling system adopts
specific PC control card used for testing machines, realizing the data zero and plus adjustment, which has very high reliability.
2>Supporting multi-transducers. Realizing the database management of the test data which are stored according to the standard format; facilitating other software to analyze and transfer.
3> Perfect programming by auto program control, every control mode can smoothly shift to another one. Fulfilling the test requirement of all kinds of materials with every test standard home and abroad.
4>Control software has the the auto-adjusting function of test hardness, which assures that the system works with every kind of specimen hardness.
5>Perfect graphic function realizing the arbitrarily magnifying, decreasing, equaling, adding, indicative display and print of all kinds of test curves, the test point searching as well as the simultaneous display and print of several kinds of test curves. Data processing supposes self-disposing and input disposing of graphic human computer interaction, which facilitates the check and contrast of the test result.
6>The user can self-define the output of the test report, which makes the report format have high flexibility.
7>Modularization design facilitated the software upgrading, function spreading as well as the second development.
Force measurement
Load accuracy meets or exceeds grade 1 ASTM E4,ISO7500-1,EN10002-2, BS1610,DIN51221
Displacement measurement
Encoder over 2000 pulse/turn to guarantee the accurate displacement, the encoder is installed with the ball screw and the ball screw to drive it turning directly.
Speed setting
Speed can be set between 0.01-500 mm/min by computer and excellent servo motor can support the high speed, and the speed can be extended by special offer.
Load frame
Robust compact structure guarantees the stiffness of the machine, and the servo motor drives the no backlash ball screw to do test
Technical specification:

Main technical

specification

WDW

300

Structure type

Door-type

Max test force ( KN )

300

Ways of operate

Computer controlled

Load measurement range

1%-100%

Test force accuracy

Better than indication value ±1%(0.5%)

Speed of displacement

0.01-500mm/min

Displacement resolution

0.001mm

Displacement accuracy

±1%

Crosshead movement space

900mm

Tensile space

550mm

Compression space

800mm

Effective test space

500mm

Accuracy

Class 1

Force control rate

adjustment range

0.005--5%Fs/s

deformation rate

adjustment range

0.02-5%Fs/s

protection

Overload protection and limit protection

Working environment

Room temperature~45℃ humidity 20%-80%

Grip type

According to the client`s demand

Standard delivery:

NO.

1

Test host

1

2

AC servo motor

1

3

Speed governor

1

4

Load cell

1

5

Precision ball screw

2

6

Deceleration system

1

7

Computer control system

1

8

Optical encoder

1

9

Computer

1

10

Printer

1

11

Windows system software

1

12

Accompany tools

1

13

Tensile accessory

1

14

Compression accessory

1

15

Bending accessory

1

16

Technical information

1

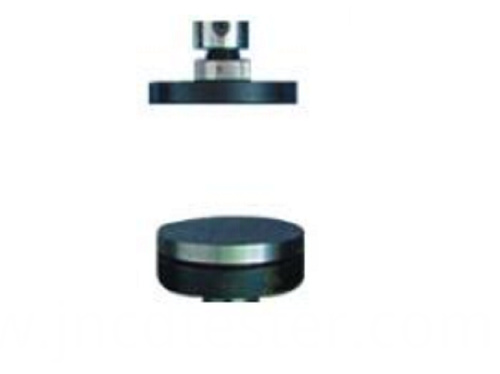

Accessory photo:

Electronic Utm PlatenAccessory

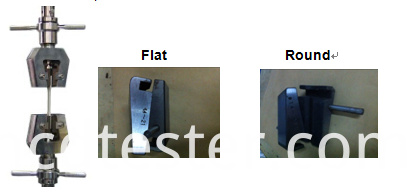

Detail:

WDW-300

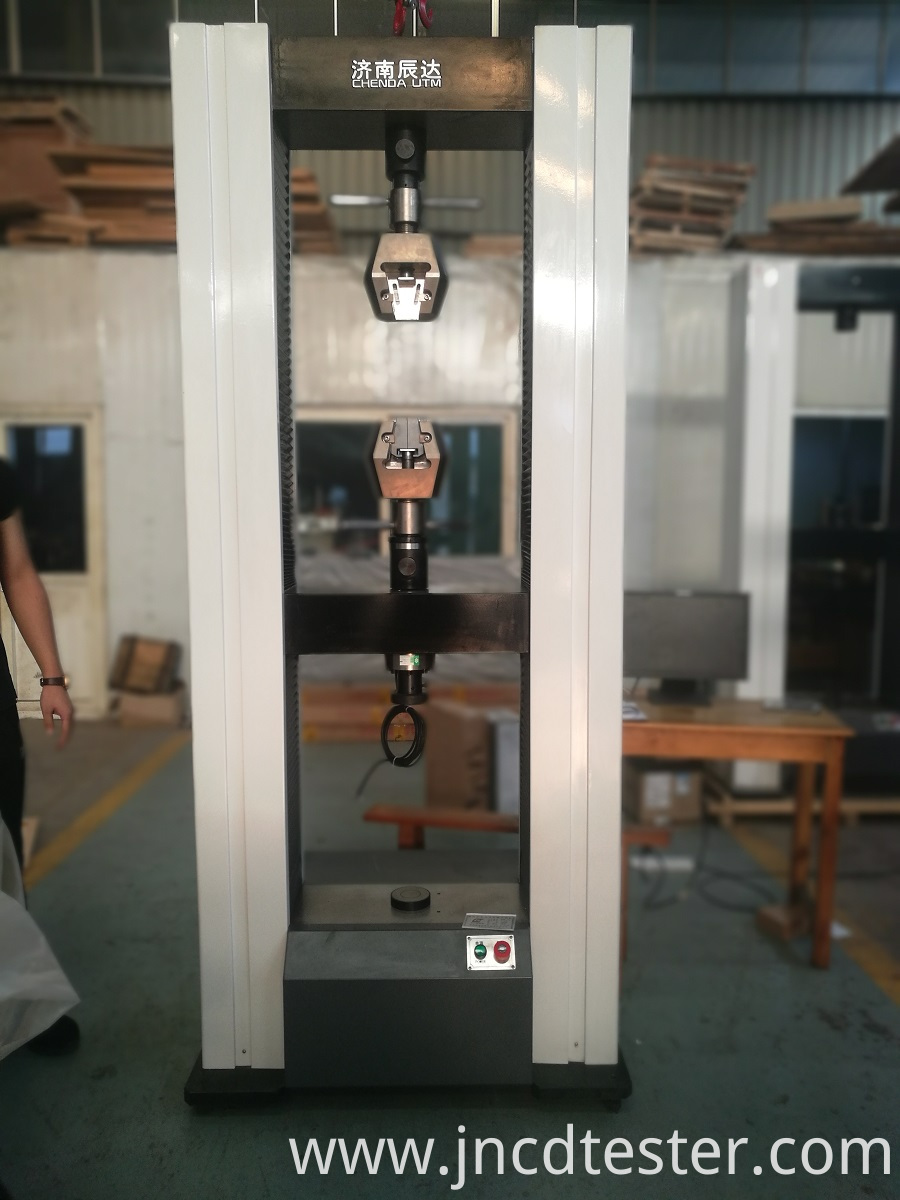

Machine Photo:

IMG_20180829_170945

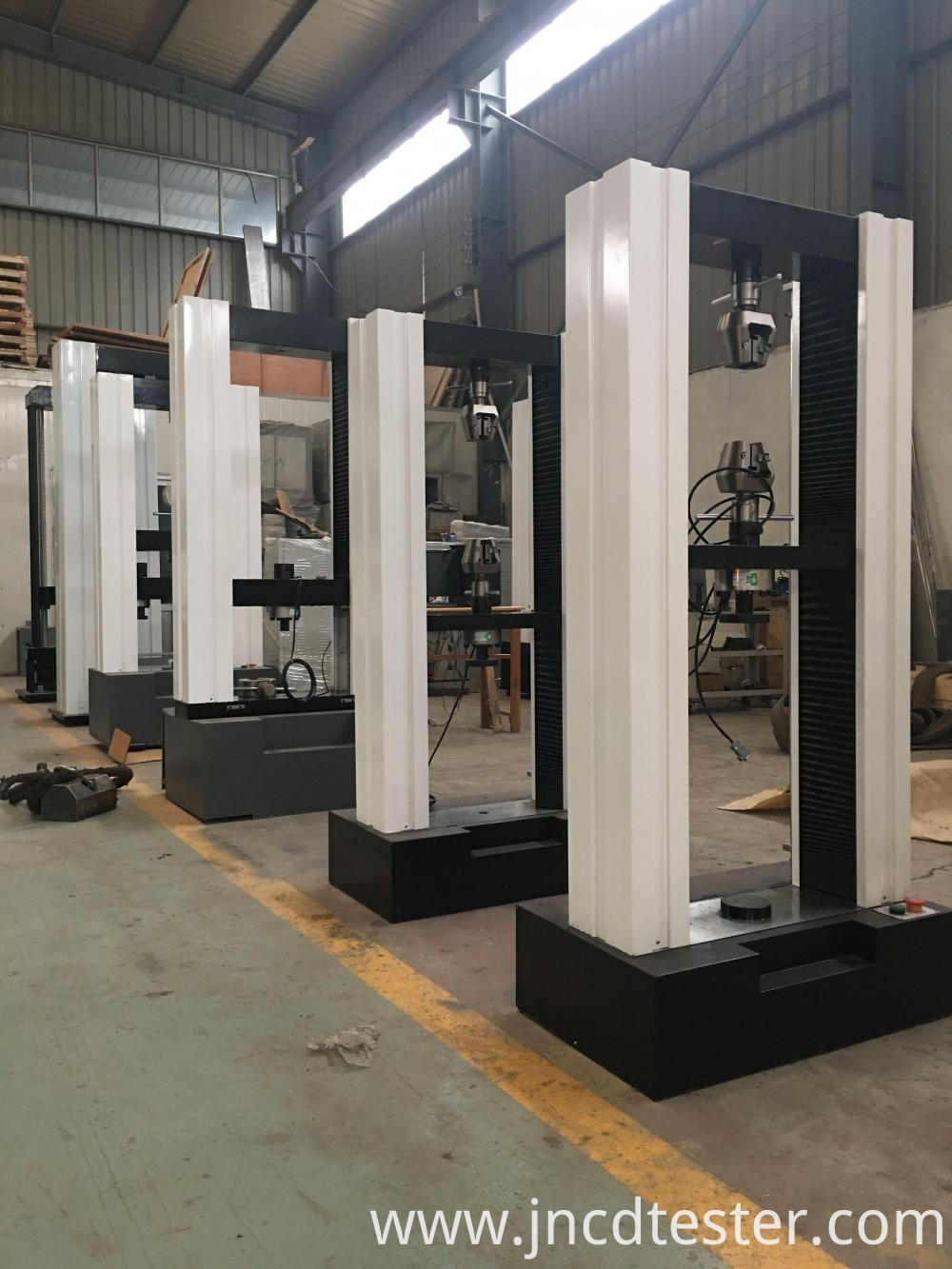

Working shop:

2
