Home > Products > Hydraulic Compression Testing Machine > Computer Control Hydraulic Compression Testing Machine > 600KN Sleeper Hydraulic Pressure Testing Machine Price
Online Service

600KN Sleeper Hydraulic Pressure Testing Machine Price

Share to:
Payment Type: L/C,T/T
Terms of Trade: FOB,CFR,CIF,EXW
Min. Order: 1
Delivery Time: 10
Basic Info
Model No.:GJZ-600
Type: Compression Testing Machine
Maxcapacity: >1000KN
Accuracy Grade: 1
Load Way: Mechanical Load
Loading Method: Static Load
Display: Digital
Control: Computer Control
Weight: 1000-2000Kg
Power Source: AC380V
Oil Cylinder Position: Under
Additional Info
Packaging: Export Wooden Case
Productivity: 300 Sets/month
Brand: Chenda
Transportation: Ocean
Place of Origin: China
Supply Ability: 300 Sets/month
Certificate: CE SGS
HS Code: 9024800000
Port: QINGDAO
Product Description
Features:
1. This machine adopts servo automatic control, hydraulic loading, electronic measurement, computer display and automatic data processing. The hydraulic system is mainly composed by all-digital precision servo value and high-pressure oil pump. Automatically controlled by a computer. Integrated oil source control system. The high of operating part is appropriate easy to operate and observe.
2. The frame adopts four columns structure. Easy loading and unloading test sample and good stability.
The main frame composed by base, oil piston, upper and lower Compression Platen, columns, crosshead, spherical indenter and other related parts.
3. Loading system, integrated operation control oil source system, stylish, beautiful and easy operate
It adopts hydraulic servo valve to ensure the system high precision and efficient, low noise and fast response.
It is composed of all-digital multi-channel closed-loop measurement and control system, sensor, all-digital servo valve, high-pressure oil pump, oil source console and so on.
Use computer to achieve automatic control, display data acquisition processing and other functions.
4. Using brand computer with Win7 system testing software. According to the test standard or customer demands to measure the various materials compressive properties.
The test data acquisition, processing, analysis, storage and display of test process are performed automatically by the computer and the measurement result is accurate and reliable. The test data for re-statistics and processing, and then output print the various requirements of the test curve and test reports. With the test curve to enlarge, compare, traverse function, intelligent, convenient.

Technical specification:

NO.

ITEM

SPECIFICATION

1

Max. test force(kN)

600

2

Measurement range(kN)

4%-100%FS

3

Testing Machine accuracy

≤±1%

4

Max. compression space(mm)

0-450

5

Distance between columns

(length x width)mm

850x930

6

Upper loading span(mm)

500,600,Adjustable

7

Lower loading span(mm)

600,700,800,1500,Adjustable

8

Max. stroke of piston (mm)

250

9

Loading speed

Adjustable

10

Dimension :length × width × high(mm)

Frame (include loading structure)(mm)

2400x1800x1100mm

Oil source (mm)

1200x800x1100

11

Power

380V±10% 50Hz,2.0kw

12

weight(kg)

≈4500

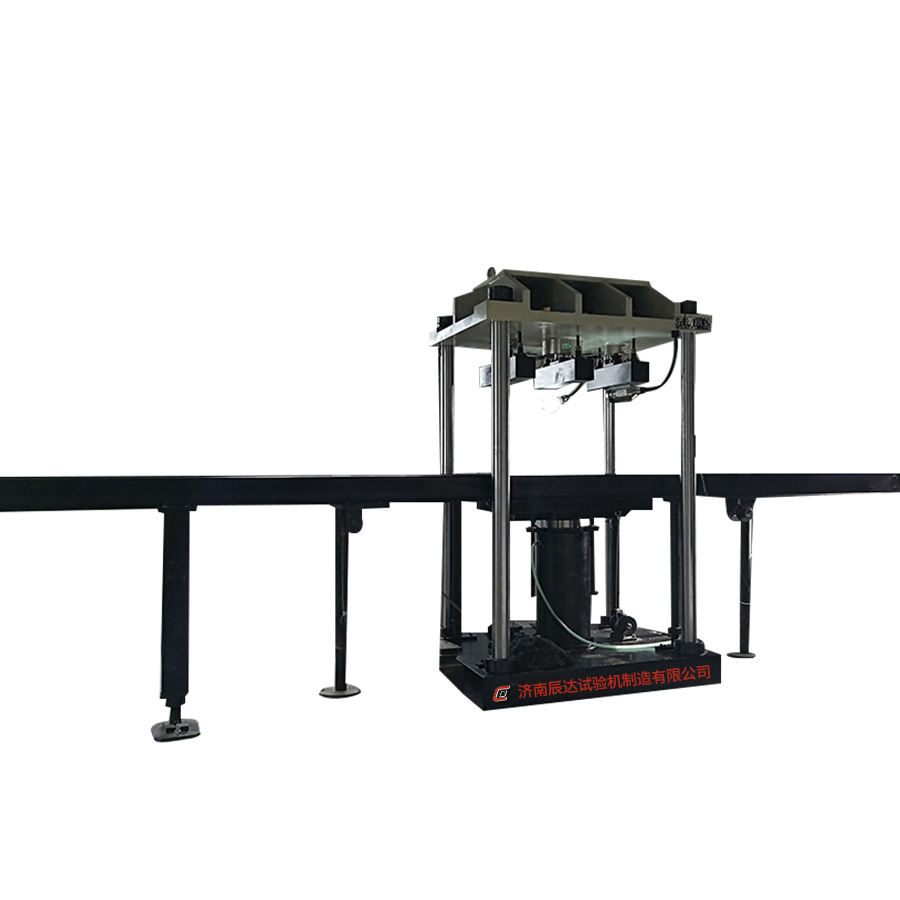

Machine photo:

Concrete Sleeper Static Load Test
